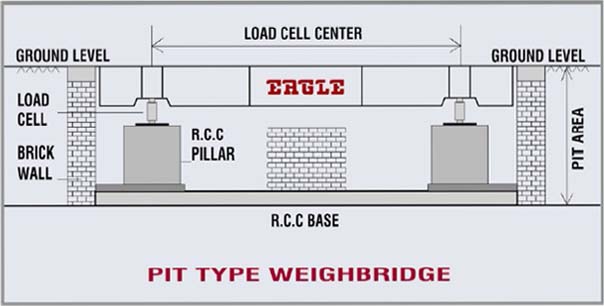

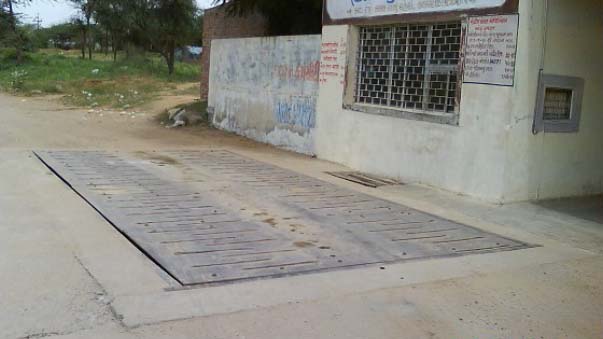

This type of weighbridge is most suitable for places with limited space e.g. non-hilly areas where the construction of pit is not a costly affair. Since the platform is in level with the ground, vehicles can approach the weighbridge from any direct ion. Most public weighbridges prefer this design.
Benefits:

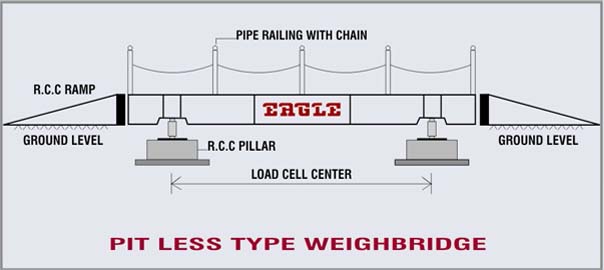

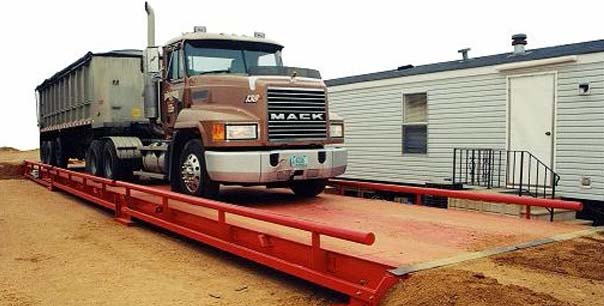

This type of weighbr idge / Truck scale is most suitable where the excavat ion work for foundat ion is difficult or const ruct ion of pit is expensive. Since the st ructure is above ground level, vehicles can approach the weighbridge only from two direct ions where the ramps are provided. This type of weighbridge requires more space.
Benefits:

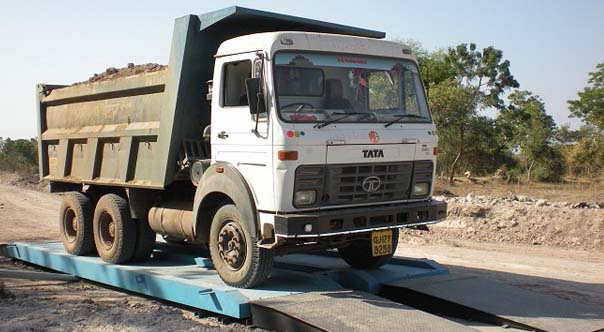

Mobile weighbridge needs no foundat ion, just smooth hard surface on which the load cell plates rest. This saves lots of cost and time. Standard weighbridge foundation and installation takes 2-3 months while mobile weighbridges can be installed in 2 hours. These weighbridges can also be shifted to another site easily. The modular design helps in easy cost effective transportation and re-installation.
These are steel fabricated modular plat form supplied complete with ramps. The top plate is steel checkered. Machine comes with the bot tom frame which is steel fabr icated. The load cells are installed between the bot tom frame and the top frame. The bot tom frame subst itutes the traditional foundation. The bottom frame just needs a smooth hard surface on which it rests.
Benefits:
Mobile Weighbridges We offer clients a wide range of mobile weighbr idges. These are fully certified, totally mobile and self-contained unit that can be set up at virtually any location within minutes. Further its innovative designs also allow it to be towed by t ruck- t ractor unit , or byt ractor using a front dolly, thus reducing the involved t ransport costs. The products offered under this category include:
Features:
Applications:

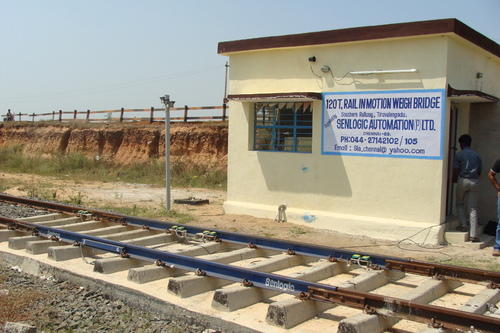

We provide superior quality rail weighing systems, automatic weighing systems that are based on latest technology. Our rail in motion weighing systems is available in customized mode to meet the exact demands of our clients. Our wide array of rail in motion weighing systems comprises of the following:
Specifications:
Mobile Weighbridges We offer clients a wide range of mobile weighbr idges. These are fully certified, totally mobile and self-contained unit that can be set up at virtually any location within minutes. Further its innovative designs also allow it to be towed by t ruck- t ractor unit , or byt ractor using a front dolly, thus reducing the involved t ransport costs. The products offered under this category include:
Features:
Specifications:
